实际项目部署案例

1197字约4分钟

2024-09-29

部署项目前的梳理：

1.项目的代码构成，什么语言开发的

2.项目的依赖环境

3.项目的配置文件在哪里

4.项目的端口清单

5.项目有没有做数据的持久化

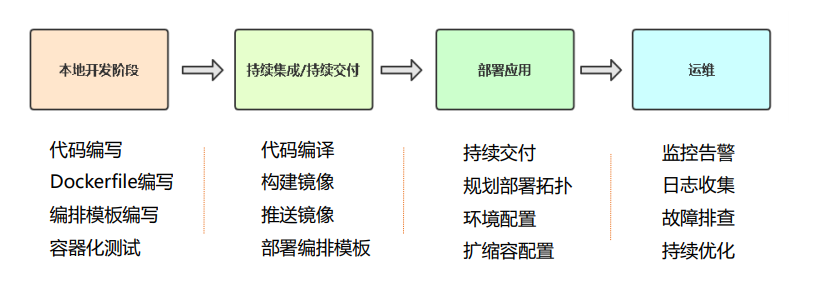

容器交付流程

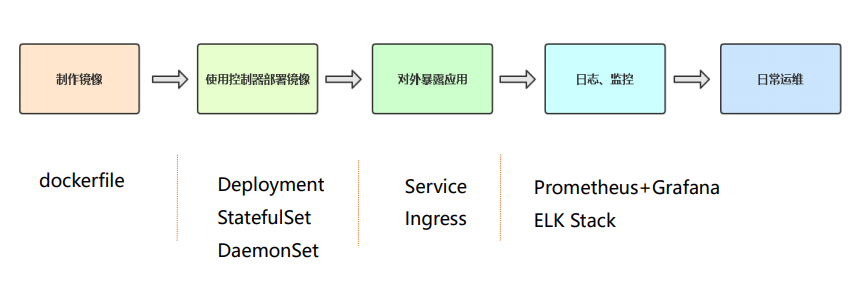

在K8s平台部署项目流程

在K8s平台部署Java网站项目

阿里云maven源地址： https://maven.aliyun.com/mvn/guide

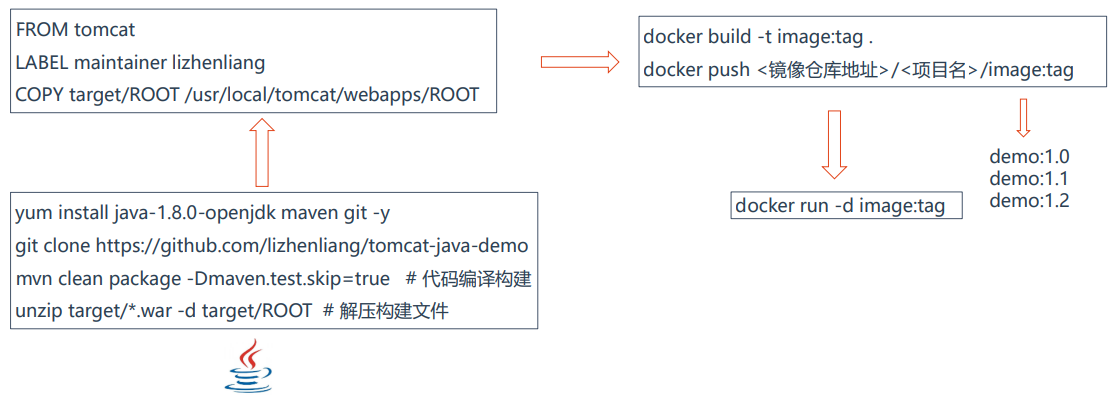

第一步：制作镜像

yum install java-1.8.0-openjdk maven git -y
git clone https://github.com/lizhenliang/tomcat-java-demo
mvn clean package -Dmaven.test.skip=true # 代码编译构建
unzip target/*.war -d target/ROOT # 解压构建文件

FROM lizhenliang/tomcat
LABEL maintainer www.ctnrs.com
RUN rm -rf /usr/local/tomcat/webapps/*
COPY target/ROOT /usr/local/tomcat/webapps/ROOT

docker build -t image:tag .
docker push <镜像仓库地址>/<项目名>/image:tag

docker run -d image:tag

使用镜像仓库（私有仓库、公共仓库）：

1、配置可信任（如果仓库是HTTPS访问不用配置）

# vi /etc/docker/daemon.json
{
    insecure-registries": ["192.168.0.13"]
}

2、将镜像仓库认证凭据保存在K8s Secret中

kubectl create secret docker-registry registry-auth --docker-username=admin --docker-password=Harbor12345 --docker-server=192.168.0.13

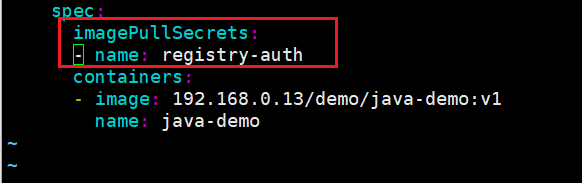

3、在yaml中使用这个认证凭据

      imagePullSecrets:
      - name: registry-auth

配置认证的的原因是部署的harbor是私有仓库，k8s的每个节点每次去拉取镜像都必须登录harbor仓库，比较麻烦，通过在yaml配置文件指定docker登录认证凭据，这样docker每次部署的时候就会自动去拉取镜像了。

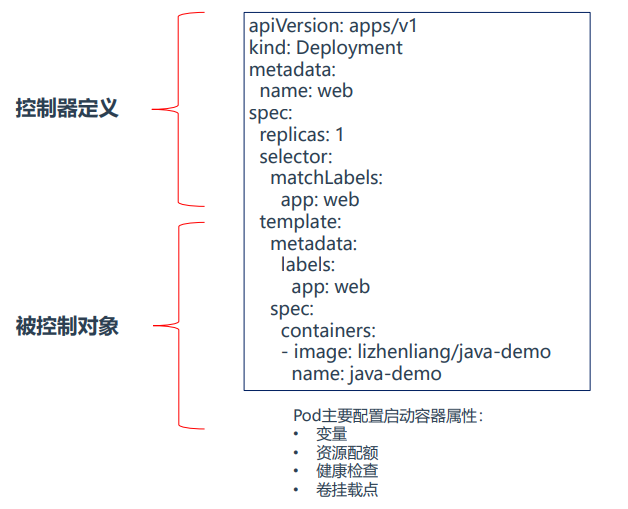

第二步：使用控制器部署镜像

注意：在pod中挂载configmap配置文件时，如果指定容器内挂载的目录不是空目录，那么会覆盖原来目录下的内容。

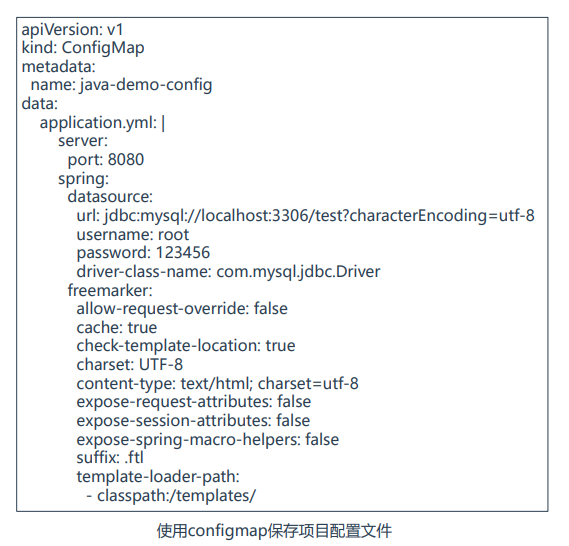

部署configmap

vim configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: java-demo-config
data:
    application.yml: |
        server:
          port: 8080
        spring:
          datasource:
            url: jdbc:mysql://java-demo-db:3306/k8s?characterEncoding=utf-8
            username: azhe
            password: 123456
            driver-class-name: com.mysql.jdbc.Driver
          freemarker:
            allow-request-override: false
            cache: true
            check-template-location: true
            charset: UTF-8
            content-type: text/html; charset=utf-8
            expose-request-attributes: false
            expose-session-attributes: false
            expose-spring-macro-helpers: false
            suffix: .ftl
            template-loader-path:
              - classpath:/templates/

部署deployment

vim deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: web
spec:
  replicas: 3
  selector:
    matchLabels:
      app: java
  template:
    metadata:
      labels:
        app: java
    spec:
      imagePullSecrets:
      - name: registry-auth
      containers:
      - image: 192.168.0.13/demo/java-demo:v1
        name: java-demo
        resources:
          requests:
            cpu: 0.5
            memory: 500Mi
          limits:
            cpu: 1
            memory: 1Gi
        livenessProbe:
          httpGet:
            path: /
            port: 8080
          initialDelaySeconds: 40
          periodSeconds: 10
        readinessProbe:
          httpGet:
            path: /
            port: 8080
          initialDelaySeconds: 40
          periodSeconds: 10
        volumeMounts:
        - name: config
          mountPath: "/usr/local/tomcat/webapps/ROOT/WEB-INF/classes/application.yml"
          subPath: "application.yml"
      volumes:
      - name: config
        configMap:
          name: java-demo-config
          items:
          - key: "application.yml"
            path: "application.yml"

kubectl apply -f configmap.yaml
kubectl apply -f deployment.yaml

第三步：对外暴露应用

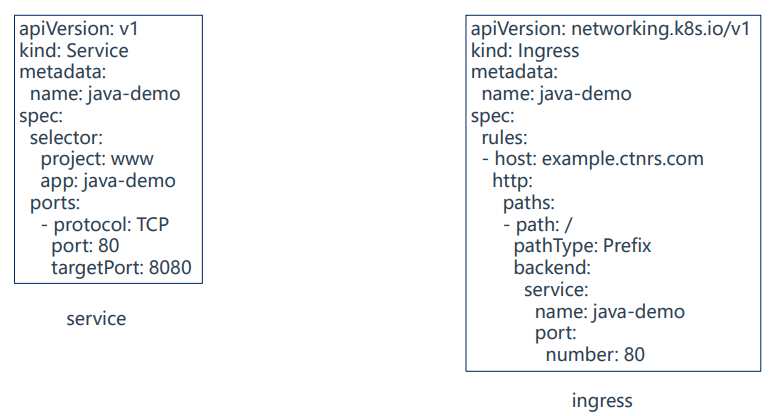

部署service

vim service.yaml

apiVersion: v1
kind: Service
metadata:
  name: java-demo
spec:
  selector:
    app: java
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8080

部署ingress（首先部署nginx-ingress-controller，监听端口是80和443)

vim ingress.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: java-demo
spec:
  rules:
  - host: java.ctnrs.com
    http:
      paths:
        - path: /
          pathType: Prefix
          backend:
            service:
              name: java-demo
              port:
                number: 80

部署mysql数据库（1.部署NFS实现自动创建PV插件 2.导入表到k8s数据库）

nfs-client.zip

#安装nfs安装包（每个k8s节点都要安装）
yum install nfs-utils
#创建nfs共享目录
mkdir -p /nfs/kubernetes
#修改nfs配置文件
vim /etc/exports
/nfs/kubernetes *(rw,no_root_squash)
#启动nfs并加入开机自启
systemctl start nfs
systemctl enable nfs

#部署NFS实现自动创建PV插件：
git clone https://github.com/kubernetes-incubator/external-storage
cd nfs-client/deploy
kubectl apply -f rbac.yaml # 授权访问apiserver
kubectl apply -f deployment.yaml # 部署插件，需修改里面NFS服务器地址与共享目录
kubectl apply -f class.yaml # 创建存储类
kubectl get sc  # 查看存储类

#导入表到k8s数据库
kubectl get pod
kubectl cp tables_ly_tomcat.sql java-demo-db-6c775c4d4b-7xfgc:/
kubectl exec -it java-demo-db-6c775c4d4b-7xfgc -- bash
mysql -u root -p$MYSQL_ROOT_PASSWORD
show databses;
use k8s;
source /tables_ly_tomcat.sql;

vim mysql.yaml

apiVersion: v1
kind: Secret
metadata:
  name: java-demo-db
  namespace: default
type: Opaque
data:
  mysql-root-password: "MTIzNDU2"
  mysql-password: "MTIzNDU2"
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: java-demo-db
  namespace: default
spec:
  selector:
    matchLabels:
      operation: www
      app: mysql
  template:
    metadata:
      labels:
        operation: www
        app: mysql
    spec:
      containers:
      - name: db
        image: mysql:5.7.30
        resources:
          requests:
            cpu: 500m
            memory: 512Mi
          limits:
            cpu: 500m
            memory: 512Mi
        env:
        - name: MYSQL_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              name: java-demo-db
              key: mysql-root-password
        - name: MYSQL_PASSWORD
          valueFrom:
            secretKeyRef:
              name: java-demo-db
              key: mysql-password
        - name: MYSQL_USER
          value: "azhe"
        - name: MYSQL_DATABASE
          value: "k8s"
        ports:
        - name: mysql
          containerPort: 3306
        livenessProbe:
          exec:
            command:
            - sh
            - -c
            - "mysqladmin ping -u root -p${MYSQL_ROOT_PASSWORD}"
          initialDelaySeconds: 30
          periodSeconds: 10
        readinessProbe:
          exec:
            command:
            - sh
            - -c
            - "mysqladmin ping -u root -p${MYSQL_ROOT_PASSWORD}"
          initialDelaySeconds: 5
          periodSeconds: 10
        volumeMounts:
        - name: data
          mountPath: /var/lib/mysql

      volumes:
      - name: data
        persistentVolumeClaim:
          claimName: java-demo-db
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: java-demo-db
  namespace: default
spec:
  storageClassName: "managed-nfs-storage"
  accessModes:
    - "ReadWriteOnce"
  resources:
    requests:
      storage: "8Gi"
---
apiVersion: v1
kind: Service
metadata:
  name: java-demo-db
  namespace: default
spec:
  type: ClusterIP
  ports:
  - name: mysql
    port: 3306
    targetPort: mysql
  selector:
    operation: www
    app: mysql

kubectl apply -f service.yaml
kubectl apply -f ingress.yaml
kubectl apply -f mysql.yaml

访问java.ctnrs.com，添加用户验证数据库是否可用

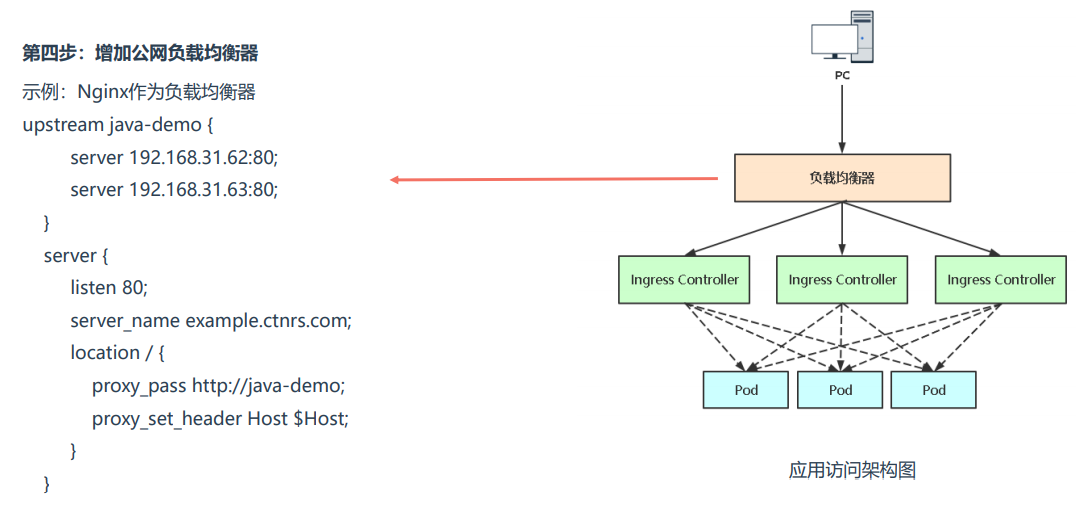

第四步：增加公网负载均衡器

upstream java-demo {
      server 192.168.0.12:80;
      server 192.168.0.13:80;
    }
      server {
         listen 81;
         server_name java.ctnrs.com;
         location / {
            proxy_pass http://java-demo;
            proxy_set_header Host $Host;
         }
      }

访问java.ctnrs.com:81

1、为指定用户授权访问不同命名空间权限

2、使用Helm完成Java网站项目部署

注：自由发挥，实现需求即可
